Pickup experiment- bypassing electronics
Speaking with Pete Biltoft at Vintage Vibe Guitars about possible dog-eared P-90 pickup replacements for the Riviera P93, Pete recommended I first try bypassing the guitar’s electronics to see if they’re sucking the tone away. This experiment requires disconnecting the pickup wire from the electronics, and routing it directly to the output jack. The results are interesting. Read on for pictures, and audio, video before/after.

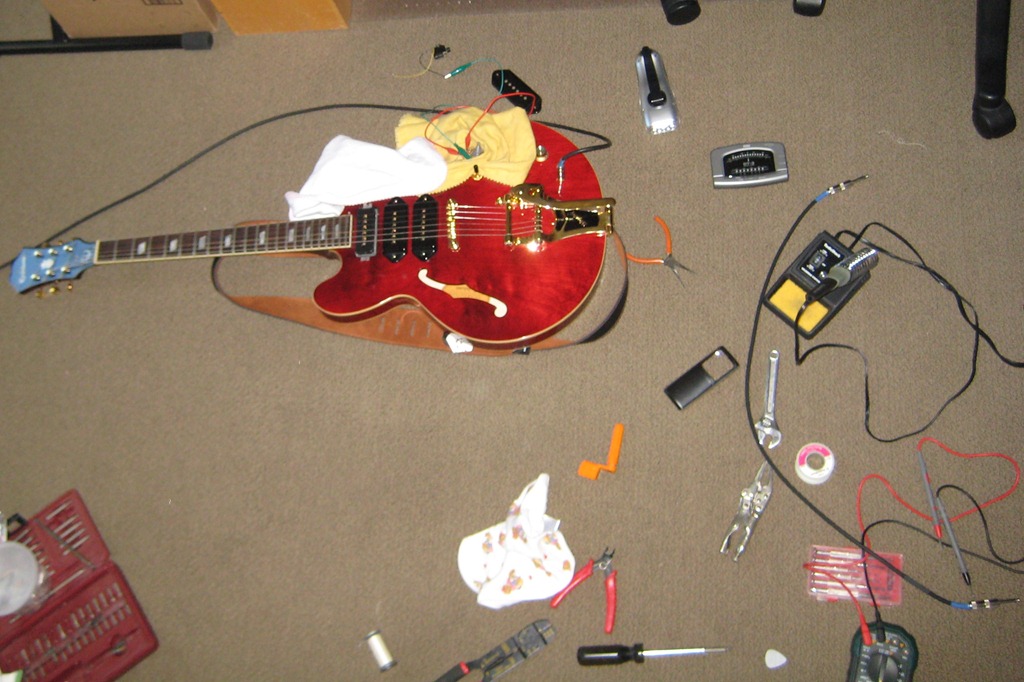

It felt a bit like open heart surgery! I held the neck volume pot with locking pliers so I could use a soldering iron to remove the red wire from the pot. Old baby blankets and polish cloths came in handy here to protect the finish:)
Rather than fishing out the output jack through the f-hole, I used alligator clips to attach an extra jack hanging off the side of the guitar. The green alligator connects the jack ground to the pickup ground. The red alligator connects to the red signal wire of the pickup. With this setup, I can easily swap the red alligator between the new output jack and right back to the neck volume pot.
Audio Examples
Through Electronics | Bypassing Electronics |
---|---|
Pattern 1 | Pattern 1 |
Pattern 2 | Pattern 2 |
Pattern 3 | Pattern 3 |
So, it’s time to find and order some pots and caps! I’ll do a post on installation, and the followup for sound comparison.
Angel Moonfield
September 10, 2009 @ 6:24 pm
yeaa great demo friend I want to buy an Epiphone P93 but I have some doubts
Is it a good guitar?
ArthurZerio
September 10, 2009 @ 6:51 pm
Nice video man, you are really healpful!!
Hope to see more ;D
lucy121206
September 15, 2009 @ 7:58 pm
Hey, man, this is awesome. I’ve had this guitar for about two months and I’ve wondered how the sound could be cleaned up a bit. This is evidently a big step. However, since you seem to be keen on the techie side of things, have you ever messed with any Lindy Fralin p90s? I was thinking about installing the Fralin hum-canceling ones in the middle and neck and putting a Gibson p90 in the bridge. What’s the word on this? Anything at all would be helpful.
usedtobias
September 21, 2009 @ 10:37 pm
Hello there! How’s the neck on this? None are in local stores to try, and I’ve heard it’s an oddly thin neck for a semi-hollow. Is that true? I like fatter necks (like the one on the Casino, for example); would I be disappointed?
usedtobias
September 21, 2009 @ 11:51 pm
Wow, thanks for the very specific reply! Funny that I can’t see it on this page. Anyway, sorry to come off like a moron, but most of those measurements are actually lost on me! I was just wondering if it felt as chunky (this is about as specific as I get) as a Dot or something, or thinner like most Fenders tend to be?
John
September 22, 2009 @ 8:30 am
I just measured the Riviera neck with calipers (from fretboard top to? back
of neck). Measures 7/8″ thick at 1st fret and 1″ thick at 12th fret.
Fretboard width, edge to edge, at 1st fret is 1 3/4″ and at 12th fret is 2
1/16″. Scale length (bridge to nut) is 24 3/4″ I think it feels great. It’s
very similar to my G&L ASAT neck. A little fatter than my Taylor 714
acoustic neck. Way fatter than my Ibanez 540. I’ll post some pictures at my
blog.
crust
October 9, 2009 @ 3:21 pm
Hi,
I own one of these instruments. Your demo and mod videos are cool. I’ve just left mine stock but now that I’ve seen what you are doing, I might fiddle with it a little bit. I really like this guitar but it does have some minor issues (little fret buzz at a couple frets) but nothing major. I’m going to view all your vids to see more about what you have done.
Thanks
crust
John
October 10, 2009 @ 3:37 pm
Hey Crust,
Mine also had fret buzz. I got a tech to dress the frets (file/crown/polish), and it’s much much better. He also filed the nut so it’s lower. I’m now able to get much lower action without buzz, compared to before.
I posted all the details before/after the luthier’s work here:
https://www.planetz.com/?p=16
Stay tuned – I’m working on a bunch of new posts/videos – replacing the pots, making a no-load tone pot, replacing the tone capacitor, installing new pickups, and replacing the Tune-o-matic with a roller bridge.
Keep in touch about your mods. Curious to hear how it goes!
-John
zack
October 10, 2009 @ 2:51 pm
hey, i’ve been following this project of yours too. i really appreciate what you are doing as i’ve been considering this guitar for a while now. i was thinking about changing the tom for a roller version (probably the one at stewmac), changing the nut, getting some locking tuners, and changing the pickups. i’m a little torn with indecision over getting one of these and slowly upgrading it, or getting a regular dot and modding that. i like the chrome on the dots, but i love this wine red and the gold looks great on the wine red. maybe i could tarnish the gold and get it to look cool. anyway, i’m thinking about getting some tv jones powertrons to replace the pups with. they have a dogear p90 mount now for their pups. they’ll give the guitar almost a gretsch sound and can be wired for single coil taps. i’m not sure how it would look, but i think it would be cool and sound pretty great. what do you think?
John
October 10, 2009 @ 3:26 pm
Hey Zack,
I chose the Riviera P93 over the Dot because of the three P-90’s and the Bigsby. Modding a dot with a bigsby ends up looking a bit goofy, because of the holes left by the original tailstop.
I like the red/gold too, but that’s not that critical for me. To be honest, gold makes all replacement parts a bit more expensive.
If you want a bigsby, and want three routed spaces for pickups, then go for the Riviera P93. I think you’d be able to mod it really well.
I haven’t tried the TV Jones pickups, but I’ve read good things about them. I got a set of replacement P-90’s from Vintage Vibe Guitars, which are unique in that you can swap out magnets – I’ll be experimenting with AlNiCo 2,3,5 and Ceramic magnets, and I’ll be posting a series of videos about them soon.
As for the TOM, I got the Wilkinson roller from guitarfetish, and will be installing that after the pickups are done, so stay tuned for that.
The grover tuners are pretty stable, so I don’t currently plan to replace those.
I’m still considering a graphtech nut, but I’m gonna wait til after the pickups and bridge.
Let us know what you decide, and how your mods go!
-John
zack
October 10, 2009 @ 3:49 pm
wow… that was quick! i thought about the holes being left from the stop tailpiece too, but i’m not too worried about it. i’m thinking more about cost at this point. i’d love to switch out all of the gold for chrome, but that’s just silly. it would end up costing almost as much as the guitar. i really like the way this guitar looks even though i’m not a huge fan of the gold. i’m waiting on an email from tv jones. he said he’d email a pic of what his pups look like in the dogear mount. i’m wondering if it would be too much bling. anyway, i’ll let you know what i decide if i can ever convince my wife to let me buy another guitar. “but, honey, i don’t have a semi-hollow guitar yet.”
John
October 16, 2009 @ 2:20 pm
Hey Zack,
Did you ever hear back from TV Jones with that pic? I’m curious how those PowerTrons would look – they are indeed outrageously blingy!
My wife didn’t quite get the distinction of the semi-hollow body. To her, it’s just another guitar 🙂
-John
fenderstratguy
October 14, 2009 @ 1:11 am
This was a pretty cool vid. Excellent idea and I wonder how many folks buy expensive new pickups without realizing what can be done with decent quality pots and caps.
zack
October 17, 2009 @ 6:42 am
here’s the picture they sent me. it’s not gold (obviously) and it’s not installed in a guitar, but i’m going to take this and play around in photoshop for a while. maybe i’ll be able to get a good idea what it would look like. i’m fairly certain it would sound awesome, which is all that really matters, but it would be nice if it didn’t look silly also.
Here’s the link to the picture.
Terry
October 19, 2009 @ 6:11 pm
I am liking the idea of this in Gold. I am even more interested in how it sounds. If you do this, post some video or sound clips. I like the Gretsch sound, and have wondered if I can mix this into the middle pickup. To be honest the p90s on my guitar are not too bad. I rarly use the middle pickup though unless I was a little less bite of the single coil. I also have a AC booster with the treble boosted pretty good, so that may be it.The big thing I noticed is the sustain on this. Funny I thought I had left my delay pedal on and looked down and laughed. It was the guitar. Get this, even my wife could tell the difference. She loved it! She’s awesome!!
John
November 21, 2009 @ 4:29 pm
I measured the necks on the Dot, Casino and Sheraton, and they’re all
basically the same size as the Riviera P93. Les Paul’ss and SG’s are
slightly thinner. See my blog for more specific details.
valadez191
December 4, 2009 @ 1:29 pm
I’m getting the guitar on a few weeks.
Because of the bigsby I’d like to install a graph tech nut, can you please measure the string spacing length at the nut?
John
December 5, 2009 @ 9:28 am
I’ve been thinking about doing the same thing.
The string spacing at nut is 1 3/8″. Nut width is 1 11/16″. Nut thickness is just under 1/4″ at the base. Nut height is about 5/16″.
I was looking at Graphtech pre-slotted nuts, and for TUSQ, the part # you want is PQ-6060-00. For Black TUSQ, it’s PT-6060-00.
I think these are made slightly oversized, so they may need some minor adjustments (sanding for width and height).
Hope this helps!
bootlegapples
March 17, 2010 @ 2:46 pm
Not sure if you still have the guitar or have resolved the issue but a few mods will give you some brightness.
You can switch to 1 meg on the volume,with a bright cap(for when you roll the volume back).
You can also mod the tone pots as no load pots,it’s easy to do and the info is online.
Finally you can take some windings off the pickups…this is a little more drastic but I did it with good results.
John
March 17, 2010 @ 3:51 pm
Thanks for the suggestions. I’ve already done the no load tone mod, and experimented with new caps and pots and new pickups (see my other vids on my channel).
I haven’t yet tried 1Meg pots – that’ll probably help with brightness…
NeoElvis89
February 6, 2010 @ 12:30 pm
nice baby 🙂
mandaltby
March 26, 2010 @ 12:49 pm
good job, keep us informed but I agree with you. I noticed what you did that it was brighter without the electronics
John
March 26, 2010 @ 3:20 pm
Take a look at some of the other vids in my channel. I did a bunch of experiments with pots and caps, and put in new pickups. If you wanna cut to the chase, see the video called “Epiphone Electronics Overhaul: Before and After Comparisons”
pickrhead
September 8, 2010 @ 8:10 pm
Cool, sounds like a heck of a difference without the pots. P90s should be pretty spanky, that is if they’re anything like real Gibsons. I had a pair of Lindy Fralin P90s that were nice, but a little too polite for what I wanted. I wanted some snarl without going “hot”.
I’m going to check one of these out when the local GC gets them in. I want a new Gibson-style P90 axe.
gahzeyboe
October 15, 2010 @ 4:45 pm
One reviewer I read on Musiciansfriend or GC said he fixed the muddy sound by taking out the middle pickup, which he said was draining the sound.
John
October 31, 2010 @ 9:06 pm
@gahzeyboe – interesting. i’m planning on adding a push/pull pot for the middle pickup to disable it. i’ll post a video of the results…
leonimrod
October 30, 2010 @ 10:02 pm
hi maybe this custion is a little silly but im realy want to know the answer ,you know i got a les paul junior epiphone that came with a paf pick up so i would like to know is is possible change the paf for a p-90 dogear thanks i hope u can helpme
John
October 31, 2010 @ 9:13 pm
@leonimrod – the dog-eared p-90 has different dimensions from the PAF humbucker. p-90 is about 1.5″ x 4.5″, while the PAF is more like 1.75″ x 3.5″. The p-90’s extra inch of width is really just in the ears, so that’s no big deal. But the PAF’s extra quarter-inch in height is a problem.. If the cavity in the body is routed bigger than 1.5″ tall, the P-90’s cover won’t completely cover it. Take some measurements on your guitar and see.
John
November 2, 2010 @ 12:46 pm
@leonimrod – now if you don’t care so much about the dog-ears, you can buy humbucker sized p-90’s and they should drop right in. See the Gibson P-94, Seymour Duncan Phat Cats, Vintage Vibe Guitars HS-90, etc.
marc
November 5, 2010 @ 7:44 pm
hey, man – really helpful vids and articles!
i too share the same crazy passion for tone, and its great to see how another person goes about achieving an end result.
Just curious, how do you organize the parts you remove? i always have a box of clear plastic ziplok bags handy so i can bag the parts easily and not lose them (where the heck is that one last screw?!?). some people use small boxes, egg crates, ice trays. I find i bump into them too much and they all spill.
i havent read far enough, but have you done that middle pickup mod yet (push/pull to disable)? I may be getting this on the cheap (thank you condition 4 musicians friend), and im already thinking ahead. Either the pushpull pot, or a mini toggle switch or a mini push button on the pick guard for easier access. Or heck, do something more sacrilegious – use a 5way strat switch on the pick guard with standard strat wiring, with a toggle switch for all on or neck+bridge. Yeah, crazy.
keep up the projects and vids, and kudos for finishing them! lord knows i have way too much projects myself…
John
November 9, 2010 @ 4:27 pm
Hey Marc,
I usually just use a cereal bowl for my parts as I remove them. ziplock backs is a good idea to avoid the spilling!
I haven’t yet done the push/pull mod for the middle pickup, but that’s pretty high on my list now. I like the push/pull rather than the mini toggle, mostly because it seems such a shame to drill another hole in the top 🙂 If you’re seriously considering the strat switch, check out the super switch (at stewmac). Looks interesting.
Let me know what you decide!
-John
marc
November 10, 2010 @ 12:11 pm
John,
youre right – push-pull makes more sense than a mini toggle switch, without further drastic mods. i was originally thinking of putting the mini toggle switch on the pickguard, just where the F-hole is covered. i usually stay away from drilling on the body.
On the same token, thats where i planned on putting the 5way strat switch (along the F-hole on the pickguard). This limits me to using the closed-style imports instead of the fat traditionally-exposed 5ways. The custom super switch is tempting, but may not fit since its fatter. I have one, I’ll check when i get the guitar. Wire it like a strat, then use the toggle switch hole for the all-on/bridge-neck mod.
Looking at the pickguard though, it seems unique with the cuts to expose the 3 dog-ears. I looked around and its not easily available. If i go the 5way switch route, i may have to use a different pickguard to ruin, er, i mean experiment with.
Another avenue i thought of was a rotary switch to replace the toggle, but it takes getting a little used to- changing pickup positions on the fly is tricky.
All this seems superfluous, but i dont really like the middle pickup always on, and even rolling off the volume affects the tone of the bridge and neck pickups. At the same token, ive always wondered how 3 P90’s in a strat wiring will sound like.
who knows – i may end up with just a traditional neck/bridge wiring, with that push-pull off/volume for the middle. 😀
the guitar is on its way, coming in to land on my front porch tomorrow. im already prepping the operating table. cant wait! 😛
– marc
John
November 10, 2010 @ 12:55 pm
Hey Marc,
Interesting idea putting the switches in the pick guard itself. The “e” sticker will fall off the minute you look at it, so that may be a good place 🙂
I took the pick guard off while experimenting with everything, and never put it back on, so that’s not an option for me.
I agree the rotary is probably a bit fidgety. I just found another interesting looking switch at stewmac: the “Free way” switch- it looks like a standard 3-position toggle switch, but it’s a 6 position dual pole. It’s hard to tell from the picture how well that would work in practice.
Let me know your results- I’ll be curious to hear.
Congratulations on the purchase! Have fun!
-John
marc
November 10, 2010 @ 2:32 pm
John,
Thanks for pointing out stewmac- i forgot about the MEGASWITCH. Its about as thin as an import. There are different versions, the “E” version on stewmac is like a regular strat switch, except it combines the neck and bridge instead of just the middle alone in the center position.
i used an “E+” version on a ’51 Squier. On the P93, the positions can be: Bridge/ALL ON/Bridge+Neck/Neck/Neck+Middle.
looks like we have additional tests… 😉
– marc
MrStrangediva
November 27, 2010 @ 6:44 pm
Wow! What a difference! I’ve always felt tone knobs on Gibson type guitars are fairly pointless anyway,mud glorious mud lol! Volume however is different as it really does alter tone but after this great vid I’m tempted just to put a kill switch on my SG and be done with it! Excellent video,cheers!
lando885
February 1, 2011 @ 7:33 pm
I prefer the tone before you removed the pots… seems warmer and fuller to my ears. To bright, even a tad shrill with the direct current.
CoandCaSSTB
February 24, 2011 @ 4:35 pm
i think Clapton was known for doing that in several of his guitars.
jehovahuponyou
June 25, 2011 @ 9:29 pm
CLAPTON HAD AN ALLIGATOR EGG INSTALLED IN ALL HIS GUITARS BY A VOO-DOO PRIEST IN NEW ORLEANS – DID IT HELP – YOU TELL ME!
gora1n
July 22, 2011 @ 3:22 am
Hello, I’m fixing my old Kramer (one humbucker one volume) and i want to install push/pull 500k volume pot (DiMarzio EP1201PP) to work like a regular volume pot, but when i pull i want humbucker to go directly to amp (out).
Can you help me with this or just point me wher to find wiring diagram ?
John
July 25, 2011 @ 6:18 pm
@gora1n – take a look at my planetz blog post on Feb 16, 2011 which explains how to wire push/pulls. you should be able to figure it out from there. you could also check. the Guitar Diagram Archive at the guitarelectronics website (a great place to get ideas), but i don’t think i’ve seen that particular example there.
gora1n
July 26, 2011 @ 3:23 am
@johnplanetz Thanks, got it and I make it work as I wanted.
srvledoux9
September 8, 2011 @ 2:45 pm
how are the p90s on noise level and humming? i have heard that it can be really annoying? i am thinking of installing one and i just wanted to get an opinion. i play in a leslie west mountain style. thanks.
John
September 8, 2011 @ 2:56 pm
@srvledoux9 – they hum just as much as any single-coil pickup. It really depends on where you are, and if there are bad EMI/RFI sources (fluorescent lights, dimmers, etc) near you. If you can get a pair of P90’s with one RWRP relative to the other, you can mix them together to cancel noise, just like a humbucker.
morenoanomalia
September 18, 2011 @ 8:20 pm
hi. maybe you can help me, from one day to other mi neck mic starts to soud darker. just as if you roll down the tone pot, but it works. i roll dwn it and the tone goes darker. ¿what it can be?. ¿i most have to change the pick up? thanks for the atention.
John
September 25, 2011 @ 8:52 pm
@morenoanomalia – i recommend you unsolder the pickups and components, and test them in isolation using alligator leads to confirm they’re ok. maybe you have a bad solder joint or wire- or maybe (but it’s unlikely) you actually have a problem with your pickups or pots. good luck!
NewgroundsOwnSBB
October 17, 2011 @ 1:27 pm
they didn’t sound dull at all
pshahm
December 29, 2011 @ 5:31 pm
Unfortunately we hear more of the acoustic sound than the amplified sound.
Jsmith7790
July 2, 2012 @ 1:11 am
Why is it that the people who seem to care most about this kind of shit always, without exception, exhibit essentially no actual guitar playing skill?
I think the internet is responsible for uprising of all these ‘gear theorists’. Used to be, guitar was defined by guys who played guitars. Now, it’s defined by assholes who sit around and theorize about them, obsess over concepts of “tone”, etc.
Fucking hate the internet. Heavy on information, light on knowledge.
lucasamontenegro
July 30, 2012 @ 12:51 pm
You have a point
dvdwmth
September 1, 2012 @ 3:38 pm
Yah, I know what you mean. Like that Les Paul guy. Shoulda stopped messing around with his ‘concepts of tone’ and learned to play. What a hack.
And can you believe some guy named BB king is on youtube, talking about guitar playing like he knows what he’s talking about? Stupid internet.
Jsmith7790
September 1, 2012 @ 3:46 pm
As best I can tell, this is a failed attempt at sarcasm?
rjmprod
November 19, 2012 @ 11:21 pm
Here’s the problem with this video, my friend. It is hard to tell from our (the listener) standpoint how the change really sounds, because the mike is picking up way to much of the acoustic body of the guitar. You should if possible go direct with the output of the guitar or mic the amp. Love to hear the difference with that mod! thanks.
John
November 22, 2012 @ 9:27 pm
Sorry for the audio quality. This was one of the first videos I made, years ago- before I started shooting with multiple mics and high definition video, etc. For a better example, see my video “Epiphone Electronics Overhaul, Before and After Comparisons” –
watch?v=fxc6s6tXefE
CYBERCANDYFLIPPERX7
December 26, 2012 @ 12:05 pm
Aside from all the hating… Thanks for you videos on Caps & Tone. I have actually learned “A LOT” watching these. Helping me put the right components ( Caps ) and things together for a crude but effective “VARITONE” switch. Also, Learned a bunch about POT values as well. TY. Do you think you might put a video up playing a song or 2 to shut up the haters?
John
December 30, 2012 @ 9:33 pm
Thanks for the kind words. I’m not particularly bothered by the negativity. I’ll get that no matter what I do. And I know that my playing in some of these videos wasn’t that great- but my playing wasn’t particularly the point. I know, no matter how much I play/practice, I’ll always have room to grow and improve. I’m a better player now than I was then, and I hope I’ll always be able to continue saying that 🙂
Rolco64
January 21, 2013 @ 9:34 am
Hey Bro. thanks for the cool post! Personally, I love p-90’s. I like their brighter, lighter tone. I also liked those Chords you were playing. Sort of Chicago sounding! The “straight” experiment is brilliant-I’d never thought of plugging them in directly. I realize you may desire a little more power, and that’s fine. I remember in the ’80’s some attempts were made at “Active” pick-ups/vs. Passive. Not too sure how well they were received by the masses. Thanks for the neat inside look! Best!
John
January 24, 2013 @ 4:19 pm
Passive pickups are still more common than active, but you can find tons of guitars with active pickups (especially EMG pickups). I’m not a huge fan, as they require an internal battery-powered preamp, and while they solve some typical passive-circuit issues like treble loss, they come with their own set of issues 🙂
BlackLocustMusic
December 3, 2013 @ 11:49 pm
the tone pot and cap will not affect the tone when the pot is wide open.
That means the signal does not get pushed to ground through a capacitor.
If you don’t use a tone knob, take it out and make two different volumes.
If you want to keep the tone and cap, replace them with Alesandro or CTS
sealed military grade pots and an orange drop poly Sprague capacitor 5%
tolerance. Change those nasty strings it does wonders for tone.
Ben Peralta
January 11, 2014 @ 10:42 pm
Hi John just picked up a p93.not familiar with setting the action on this
type of bridge. Also major buzz in guitar all way down frets and at bridge.
Watched a few of your videos trying to clean up the sound. Can you tell me
what you did to get the buzz gone and what your action was set at. Thanks
Rollei Joe
January 29, 2014 @ 11:11 am
Just found this on my AppleTV, doing a search for Lollar P90s. I just heard
the neck pickup sans pots, and it reminded me of when I bought my 1st
Gretsch 6117 in 1986 (a 1967 model). Gretsch has offered since the 50s, the
“tone switch” setup (which I prefer to the tone knob), and in the middle
position, the circuitry is completely out of the loop. IOW, your hearing
the straight pickups.
So when I heard you say you were going to go straight, I knew the sound
would improve. So far, haven’t seen the rest of this vid, but have now
subscribed to your channel.
I used to own an 85 Epi Sheriton, and really miss that guitar. But I still
have that 1st Gretsch, and lots more!
Cheers
Chris Nelvin
March 25, 2014 @ 11:16 pm
Do you have a video where you demo this guitar after you finished all the
work you’ve done on it? This guitar seems like a great modding platform.
Anthony Rosa
May 11, 2014 @ 11:43 pm
Hell yeah!
David McLaren
June 4, 2020 @ 4:50 am
Hi – I know this was a while back, but can you tell me if the stock P90s were two conductor plus screen – or just conductor plus screen? Thanks, David
John Cooper
June 5, 2020 @ 8:49 am
Hi David,
Yeah, nearly 11 years ago! See my wiring diagram at https://www.planetz.com/riviera-p93-circuit-wiring. So, I’m pretty sure they were single conductor.
-John
David
June 7, 2020 @ 2:15 am
An old thread but extremely useful – thank you! Turns out you were correct: single core. I re-wired with twin and screen for phase reverse – works a treat. Thanks again John, David
